SMARTCHART Digital Visual Acuity System

The smart solution in visual acuity testing



> > Unmatched clinical Results

The SmartChart is calibrated utilizing the latest technologies to the highest standards in order to eliminate pixalization and optimize colour, contrast as well as bright and superb display clarity. The advanced device calibration techniques are supported by TRUE 18-bit & 24-bit video display technology maximizing and assuring precise outcome in determination of visual defects.

> > Convenience & Ease

The SmarChart comes with either angle adjustable Wall Mount or height and angle adjustable Desk Stand maximizing flexibility in space confined areas. A simple to use IR remote with direct commands is intuitive and adds to overall convenience. The tests can be carried out in highly illuminated rooms creating comfortable and convenient environment for the patients, and clinician.

> > Hearing & Speech Impaired Tests

A complete examination specially designed to support speech or hearing impaired patients. This important feature may be eligible for health care reimbursement in selected markets.

> > Enhanced Children Tests & Fixation Methods

Vast quantity of optotypes, as well as HOTV or ALLEN Pre School tests are supported by Animations, Colourful Pictures and Videos improving child fixation and testing for all children.

> > LowVision A M D Optotypes

Standardized vision tests for patients with Age-related Macular Degeneration (AMD) allowing for optotype size and contrast alteration up to 20/1600 at a calibrated distance.

> > Paramount Contrast Testing

Threshold Optotype Testing:

Complements and extends the assessment of visual function by simple acuity tests. At the cost of more complex and time-consuming procedures, contrast sensitivity measurements yield data about an individual's ability to see low-contrast targets over an extended range of target size (and orientation).

Spatial Frequency Testing:

Significant sensitivity contrast test, which measures the ability to see objects that may not be outlined clearly or that do not stand out from their background. This is an important feature and is recommended for diagnostic of Cataract, Diabetic Retinopathy and other conditions. At the completion of the exam, the device plots a spatial frequency graph, which can then be saved and printed from the device.

> > Test & System File manager

This dynamic feature allows the SmartChart Pro to be customized to individual user or practice needs for simple upload or removal of videos and movies, new complementary tests in picture or diagram format, animations and slide shows for either research, educational and marketing purposes. The Video and Sound functions are an ideal practice marketing tool for demonstration videos and practice messages or an augment aid in children fixation methods.

> > Test Result Reporting

Patients details can be easily entered into the system upon which the physician can carry out a sequence of acuity and series of visual tests, that can be presented in a legible format and stored or printed directly from the system.

> > Universal Acuity Standards

The SmartCharts have the vastest VISUS display range and units can be easily adopted to EU, US, UK, and International or Custom standards.

> > Advantages Over Chart Projectors

SmartCharts are maintenance free and offer countless advantages over conventional Chart Projectors.

  • Extensive range of tests and optotypes with upgrade capability
  • No maintenance & part replacement
  • Precise adjustment of working distance and optotype setting
  • Space saving
  • Smooth and silent operation
  • Operation in an illuminated environment
  • Built in Computer
  • Extensive Contrast tests
  • Extensive Colour tests
  • Extensive Stereo Tests
  • Test Reporting capability
  • Patient Education Tools
  • Speech and Hearing Impaired Tests
  • Animations and Videos for children fixation, educational and practice marketing purposes
  • Random and User programmable sequencing
  • Mirrored setup capability

> > Advantages Over Simililar, Software & PC Based Systems

Opto SmartChart outperforms ALL current contemporary visual acuity devices and offer tangible advantages over Software & PC Based Systems.

  • The only TRUE 18-bit & 24-bit devices calibrated to the highest standards for size, contrast and colour depth, providing improved clinical results for the indication of visual acuity defects.
  • Fully integrated customized design dedicated for visual acuity testing eliminating the real risk of computer related software or hardware incompatibility.
  • Recurrent System upgrade* capability is easy and evolutionary keeping pace with your practice needs and the latest developments visual acuity testing.
  • Test Report function with direct print and network commands supported by customizable Patient Education and Video Function.
  • MOST extensive amount of tests and functions allowing more precise determination of ocular diseases, other medical conditions and effects of pharmaceuticals on vision such as 100-HUE, Spital Contrast and Autostreaogram Tests ALL supported by direct report analysis.

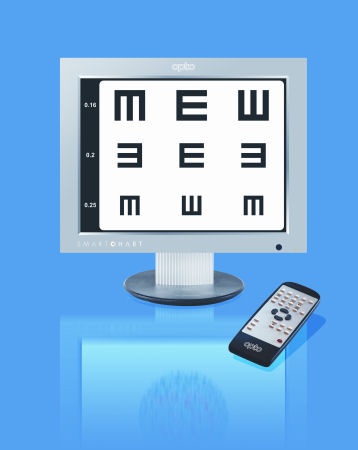

The Opto SMARTCHART is a digital visual acuity system featuring a comprehensive range of tests used by ophthalmologists and optometrists in a sleek and attractive design. The system is self-contained, with no need for external computer or additional components. The tests are remote controlled with easy and convenient commands.

Due to the high contrast and bright display, the tests can be performed in any ambient light conditions, resulting in greater convenience and flexibility for your practice.

The Opto SMARTCHART is maintenance free, having no bulbs, optics or motors, and offers more extensive range of tests than conventional chart projectors, including contrast sensitivity and colour blindness.

Opto SMARTCHART HIGHLIGHTS

  • Extensive range of optotypes & tests
  • No bulb replacement
  • Built-in computer
  • Eye anatomy figures
  • Precise adjustment of distance
  • Random sequencing
  • User programmable sequencing
  • Simple remote control with direct
    commands for all tests
  • Mirrored setup capability
  • Space saving
  • Smooth and quiet operation
  • Easy software upgrade
  • Contrast Sensitivity Tests
    (Not available in Chart Projectors)
  • Ishihara Tests
    (Not available in Chart Projectors)

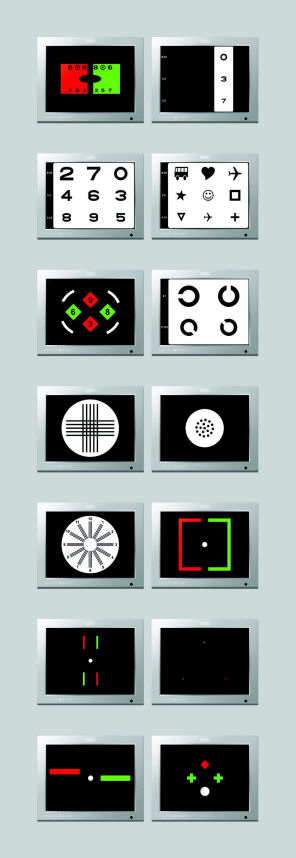

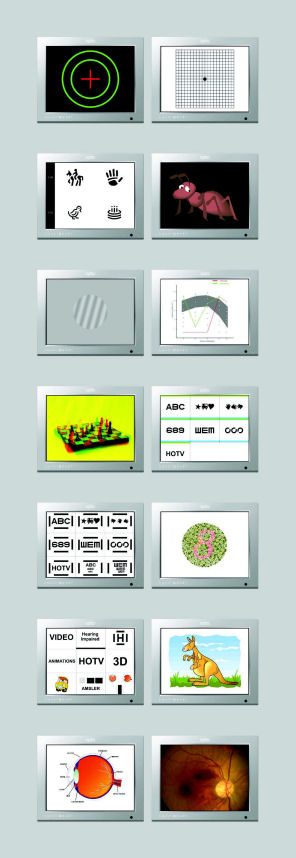

Standard Tests

  • Visual Acuity
  • Astigmatism
  • Cross Cylinder
  • Duochrome Balance
  • Red Green
  • Contrast Sensitivity
  • Fixation Point
  • Ishihara Tables
  • Schrober
  • Worth
  • Street Lamp
  • Custom

Opto Types

(Snellen and LogMar)
(*Sizes according to EN ISO 8596)

  • Letters*
  • Numbers*
  • Snellen E*
  • Landolt C Rings*
  • Figures for Children*

 TECHNICAL DATA

  SmartChart SmartChart Pro SmartChart WinPro
Display Type 15’ LCD TFT Display 18-bit 19 LCD TFT Display – 24-bit 19 LCD TFT Display – 24-bit
Background Illumination 200cd/m2 – na 200cd/m2 200cd/m2 na 200cd/m2 200cd/m2 na 200cd/m2
Refraction Test Range

Adjustable 2.0 -7m (6.65-22,8 ft)

(for standard tests)



 Adjustable 2.0 -7m (6.65-22,8 ft) (for standard tests)0.6m (1.96 ft) (for Low Vision AMD tests withAutomatic patient shift message) Adjustable 2.0 -7m (6.65-22,8 ft) (for standard tests)0.6m (1.96 ft) (for Low Vision AMD tests withAutomatic patient shift message)
Standard Chart Types LogMAR, ETDRS, Snellen, Snellen Contrast,Snellen Modified LogMAR, ETDRS, Snellen, Snellen Contrast,Snellen Modified LogMAR, ETDRS, Snellen, Snellen Contrast,Snellen Modified
Optotype Types Letters, Numbers, Snellen E, Landolt C Rings,Figures for Children, Hand Optotypes, HOTV,Crowding Bars, AMD Optotypes Letters Snellen, Letters Sloan, Numbers (4 types),Snellen E, Landolt C Rings, Figures for Children,Children Pre-School, Hands , HYVA, ALLEN , HOTV,Crowding Bars, LOW VISION Optotypes Letters Snellen, Letters Sloan, Numbers (4 types),Snellen E, Landolt C Rings, Figures for Children,Children Pre-School, Hands , HYVA, ALLEN , HOTV,Crowding Bars, LOW VISION Optotypes
Optotype Display Units(metric and imperial) Snelled dec., LogMAR, Snellen m (6/), Snellen m (5/),Snellen ft (20/), Snellen ft (10/), VAR, None Snelled decimal, LogMAR, Snellen m (6/), Snellen m(5/), Snellen m (4/), Snellen m (3/), Snellen m (2/),Snellen ft (20/), Snellen ft (10/), VAR, None Snelled decimal, LogMAR, Snellen m (6/), Snellen m(5/), Snellen m (4/), Snellen m (3/), Snellen m (2/),Snellen ft (20/), Snellen ft (10/), VAR, None
Standard Tests Visual Acuity, Astigmatism, Cross Cylinder, Duochrome Balance, Red Green, Contrast Sensitivity, Amsler, Fixation Point, Schober, Worth,Ishihara, Street Lamp, Stereo, 3D Visual Acuity, Astigmatism, Cross Cylinder,Duochrome Balance, Red Green, Contrast Sensitivity,Amsler, Fixation Point, Schober, Worth, Ishihara,Street Lamp, Stereo, 3D, Phoria, Four dots test,Fixation Disparity, Animations, Pictures for Children,100-HUE colour Visual Acuity, Astigmatism, Cross Cylinder,Duochrome Balance, Red Green, Contrast Sensitivity,Amsler, Fixation Point, Schober, Worth, Ishihara,Street Lamp, Stereo, 3D, Phoria, Four dots test,Fixation Disparity, Animations, Pictures for Children,100-HUE colour
–Hearing / Speaking Impaired Tests Available for all standard Optotypes Available for all standard optotypes Available for all standard Optotypes
Children Fixation Animations, Pictures Custom, Video, Animations, Pictures Custom, Video, Animations, Pictures
Children Tests Pictures, Hand Optotypes, Children Figures,Children Pre-School, HOTV Custom, Pictures, Standard optotypes, HandOptotypes, Children Figures, Children Pre-School,HOTV, HYVA, ALLEN Pre-School Custom, Pictures, Standard optotypes, HandOptotypes, Children Figures, Children Pre-School,HOTV, HYVA, ALLEN Pre-School
Masking (available for all types of charts) Single Optotype, Line (Horizontal), Column (Vertical) Single Optotype, Line (Horizontal), Column (Vertical),Underlining single & horizontal for LogMAR & ETDRS Single Optotype, Line (Horizontal), Column (Vertical),Underlining single & horizontal for LogMAR & ETDRS
Red Green Masks (adjustable colour depth for phoropter filter matching) Available for all standard Optotypes Available for all standard Optotypes Available for all standard Optotypes
Contrast Tests Optotype Threshold, Red Green Spatial Frequency, Optotype Threshold, Red Green Spatial Frequency, Optotype Threshold, Red Green
Test Reporting NOT AVAILABLE Acuity, Crowding Bars, Hearing Impaired, FixationDisparity, 100-HUE & Contrast Testing Acuity, Crowding Bars, Hearing Impaired, FixationDisparity, 100-HUE & Contrast Testing
Saving Patient & Test Data NOT AVAILABLE As .pdf to USB Pen Drive As .pdf to Internal HDD, to USB Pen Drive,Through Network
File Manager NOT AVAILABLE Copy, Edit, Delete & Import Files (Patient Data, Video,Animations, Pictures) from USB Pen Drive) Copy, Edit, Delete & Import Files (Patient Data, Video,Animations, Pictures) via Network & USB Pen Drive)
Patient Education Eye anatomy figures Custom, Videos, Presentations Custom, Videos, Presentations
Mirror Function Available for all tests Available for all tests Available for all tests
Sequence Programming 3 user defined programs with up to 20 steps each 3 user defined programs with up to 45 steps each 3 user defined programs with up to 45 steps each
Random Sequencing Available for all optotype tests Available for all optotype tests Available for all optotype tests
Automatic PowerOff Function Adjustable 0.5 – 4hrAdjustable 4 -10min Auto Suspend Of Adjustable 0.5 – 4hrAdjustable 4 -10min Auto Suspend Off Adjustable 0.5 – 4hrAdjustable 4 -10min Auto Suspend Off
Remote Control IR IR IR
Dimensions 366W x 291H x 50D mm 443W x 368H x 122D mm 443W x 368H x 122D mm
Weight 3.5Kgs (7.7lbs) 6Kgs (13.22lbs) 6.5Kgs (13.22lbs)
Power Requirements 90-240 VAC 50/60HZ auto-ranging 90-240 VAC 50/60HZ auto-ranging 90-240 VAC 50/60HZ auto-ranging
Power Consumption 19W 60W (max) 65W (max)

Specifications are subject to change without notice.
